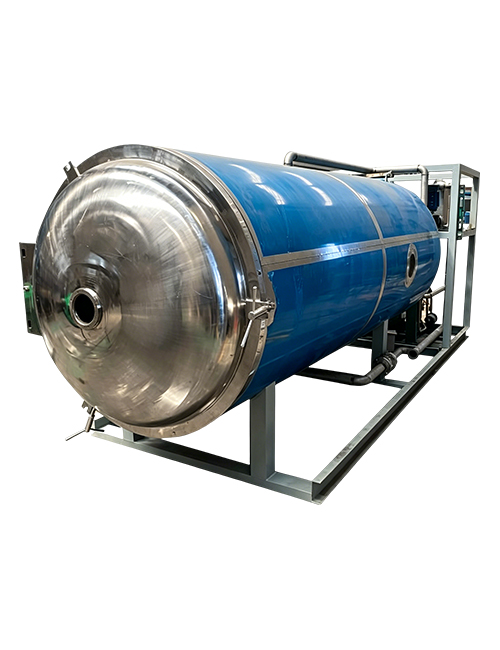

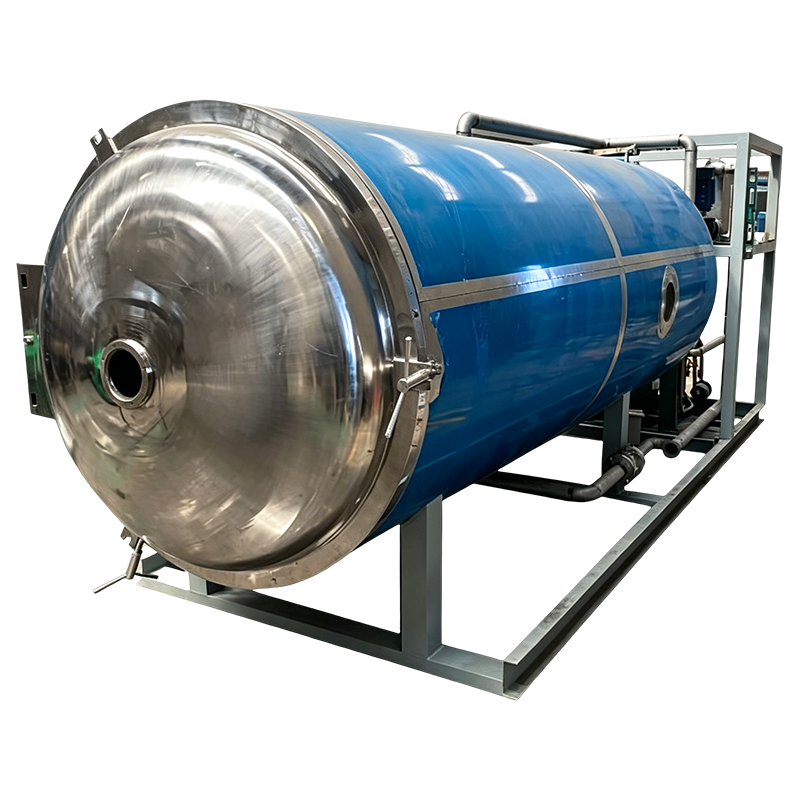

Each freeze-drying equipment weighs approximately 2.5 tons, with multiple or dozens of units forming the production line. Every freeze-drying equipment is of standard size, so it must be cost-effective in terms of price, transportation, installation, and other aspects. Each individual freeze-drying equipment consists of a warehouse, a quick freezing warehouse, a monorail I-beam, a trolley for material movement, a pallet for material loading, and a support system including refrigeration, external cooling, vacuum, circulation, heating, defrosting, and control. This device has EU CE certification.
2500kg/batch
Ice Condenser
≤ -30~-65 ℃
Condenser Temp
250㎡
Shelf Area
GMP
Compliant
Advanced refigeration systemand smart control for lowerenergy consumption.
Premium components androbust design ensure longservice life.
PLC control system with real-timemonitoring and data recordingfor precise process control.
Professional team providingpre-sales consultation andafter-sales support worldwide.
| Model | HDF-2500(2 Units) |
| Partition Area | 250㎡ |
| Cold Trap Temperature | ≤ -30~-65 ℃ |
| Ultimate Vacuum | 30 |
| Processing Capacity (Kg/batch) | 2500 |
| Interlayer Spacing (mm) | / |
| Power Supply | / |
| Power (W) | 420KW |
| Weight (KG) | Weighing before delivery |
| Material Tray Size(W"L) | / |
| External Dimensions W"D*H(mm) | 3000×4500×3000mm (Quick freezing storehouse） |
Our engineers willrecommend the bestfreeze dryer based onyour material, process,and production goals.
Talk to an Engineer
Stainless steel shelves with uniform heating
High-efficiency coil for powerful ice capture
Siemens PLC with HMI touch screen.
High vacuum pump system for stable performance.
Optional cleaning and sterilization system.
Remote monitoring and data logging solution.
Sterile&high-purity drying solutions.
