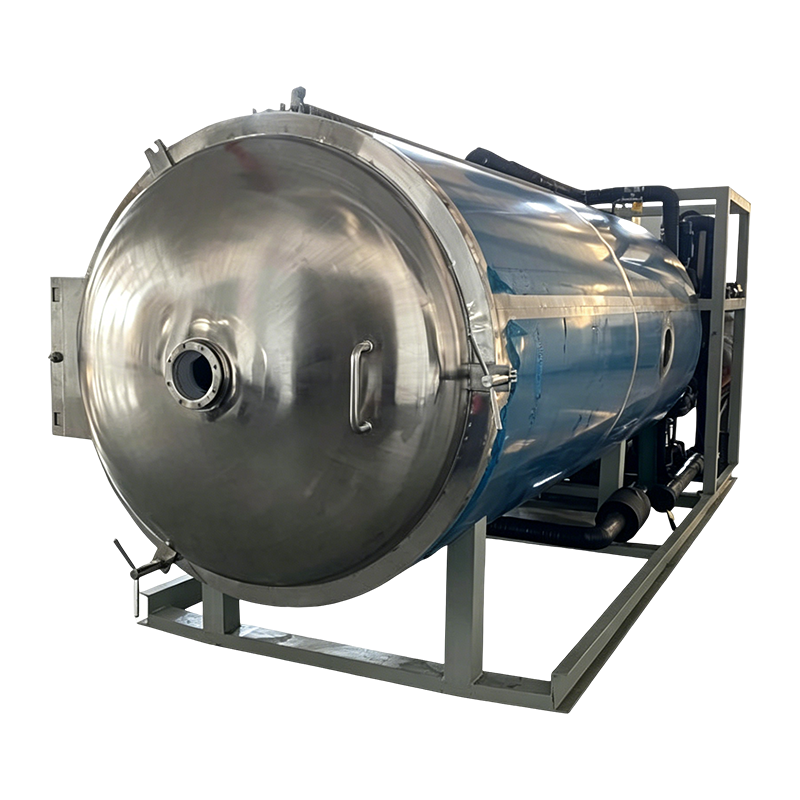

HDF-200 Freeze Drying Machine

Uniform Drying. Smart-Moisture Control. Consistency for Quality.

The HDF-200 freeze dryer is equipped with a compartment, refrigeration, vacuum, heating, circulation, control system, and product tray. The external cooling system can be selected as air-cooled or water-cooled according to environmental conditions. It is recommended to use air-cooled condensers in cold areas and water-cooled condensers in hot areas. This device has EU CE certification.

200kg/batch
Ice Condenser
≤ -70 ℃
Condenser Temp
20㎡
Shelf Area
GMP
Compliant

Request a Quote

Energy Efficient

Advanced refigeration systemand smart control for lowerenergy consumption.
Reliable & Durable

Premium components androbust design ensure longservice life.
Intelligent Control

PLC control system with real-timemonitoring and data recordingfor precise process control.
Global Support

Professional team providingpre-sales consultation andafter-sales support worldwide.

KEY FEATURES

Large capacity ice condenser for high moisturehanding capability
Uniform heating shelves for consistent and efficlent drying
Advanced PLC control system with datalogging and remote monitoring
CIP/SIP optional for pharmaceutical applications
Stainless steel construction, compliant with GMP standards
Customizable configuration to meetdiverse production needs

SPECIFICATIONS

Model	HDF-200
Partition Area	20㎡
Cold Trap Temperature	≤ -70 ℃
Ultimate Vacuum	10
Processing Capacity (Kg/batch)	200
Interlayer Spacing (mm)	/
Power Supply	/
Power (W)	36KW
Weight (KG)	4500
Material Tray Size(W"L)	/
External Dimensions W"D*H(mm)	160055002100

Ask an Engineer

Not sure which modelis right for you?

Our engineers willrecommend the bestfreeze dryer based onyour material, process,and production goals.

Talk to an Engineer

CONFIGURATIONS (OPTIONAL)

Shelf System
Stainless steel shelves with uniform heating
Condenser
High-efficiency coil for powerful ice capture
Control System
Siemens PLC with HMI touch screen.
Vacuum System
High vacuum pump system for stable performance.
CIP/SIP System
Optional cleaning and sterilization system.
Data & Monitoring
Remote monitoring and data logging solution.

APPLICATION INDUSTRIES

Pharmaceuticals
Sterile&high-purity drying solutions.
Get Pharma Solution
Biotechnology
Protect sensitive biological materials.
Get Bio Solution
Food & Nutrition
Preserve flavor, nutrition and extend shelf life.
Get Food Solution
Chemical Materials
Stable processing for advanced materials.
Get Chemical Solution
Cosmetics
High-quality drying for premium cosmetics.
Get Cosmetics Solution
