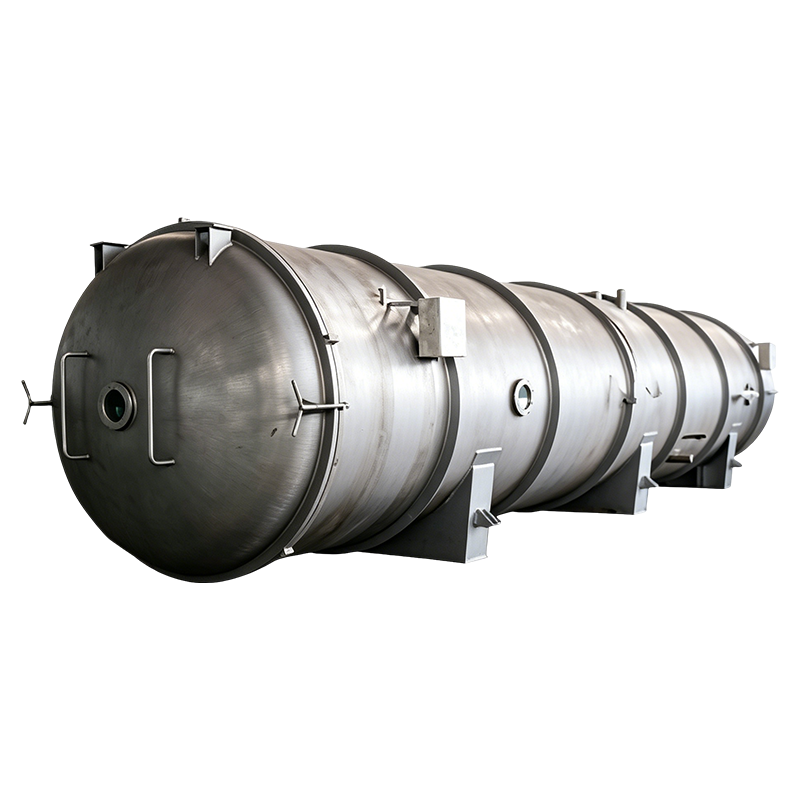

The HDF-1200 vacuum freeze-drying equipment is a cost-effective model suitable for 40 container transportation. This freeze dry machine has a remote terminal system that can be viewed and operated simultaneously on both PC and mobile devices. And this model of vacuum freeze-drying equipment has the same diameter, height, and width as other large vacuum freeze-drying equipment models. The material is frozen in a rapid freezing chamber and dried in a stainless steel chamber. The transportation of materials from the quick freezer to the vacuum freeze-drying equipment room and unloading area is carried out through a monorail system with a trolley.
1200kg/batch
Ice Condenser
≤ -30~-65 ℃
Condenser Temp
120㎡
Shelf Area
GMP
Compliant
Advanced refigeration systemand smart control for lowerenergy consumption.
Premium components androbust design ensure longservice life.
PLC control system with real-timemonitoring and data recordingfor precise process control.
Professional team providingpre-sales consultation andafter-sales support worldwide.
| Model | HDF-1200 |
| Partition Area | 120㎡ |
| Cold Trap Temperature | ≤ -30~-65 ℃ |
| Ultimate Vacuum | 30 |
| Processing Capacity (Kg/batch) | 1200 |
| Interlayer Spacing (mm) | / |
| Power Supply | / |
| Power (W) | 320KW |
| Weight (KG) | Weighing before delivery |
| Material Tray Size(W"L) | / |
| External Dimensions W"D*H(mm) | 3000×4500×3000mm (Quick freezing storehouse） |
Our engineers willrecommend the bestfreeze dryer based onyour material, process,and production goals.
Talk to an Engineer
Stainless steel shelves with uniform heating
High-efficiency coil for powerful ice capture
Siemens PLC with HMI touch screen.
High vacuum pump system for stable performance.
Optional cleaning and sterilization system.
Remote monitoring and data logging solution.
Sterile&high-purity drying solutions.
